Anviz M3 Pro IP65 Dual-frequency RFID

Categories: , , , Tags: , , SKU: Anviz_M3 Pro
img Anviz M3 M3 pro CORGEX distribution Access Control Terminal

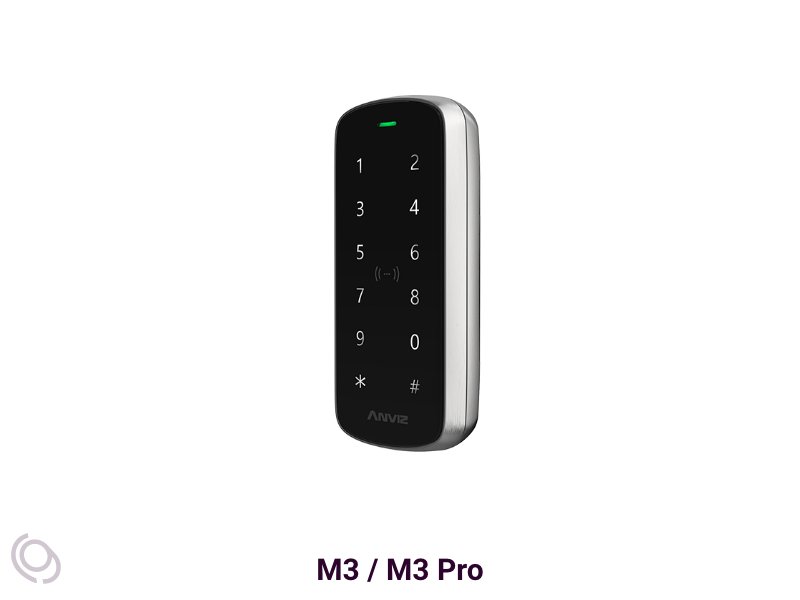

Anviz M3 Pro IP65 Dual-frequency RFID

More Secure Fingerprint Identification Technology

M3 Pro is a metal casing, IP65 water-proof design compact access control device, suitable for outdoor applications. It supports 13.56MHZ Mifare card and 125KHZ EM card dual-frequency module. The touch backlit keypad supports TCP/IP and RS485 communication convenient for customers to use. The M3 Pro has both a built-in relay for direct lock and standard Wiegand output, which can work as a standalone access controller and RFID reader.

  • IK10 Vandal Proof Design
  • Bluetooth magic shake open
  • Less than 0.5 second comparison time
  • Standalone access control functions
  • Dual-frequency RFID card identification
  • Touch active keypad
M3 M3 Pro
Max User 5,000 10,000
Max Card 5,000 10,000
Max Log 50,000 200,000
Commication TCP/IP TCP/IP, Wi-Fi Bluetooth
USB Mini USB Slave
Serial Port RS485,
Built-in Webserver Yes
Wiegand Wiegand 26, Anviz Wiegand
Relay 1Relay Output (COM, NO, NC)
IO Door Sensor, Open switch, Wiegand Out
Algorithm BioNANO V11
Identification Mode PW,Card,PW+Card,
Verification Speed <0.5 Sec
RFID Dual Frequency: NFC, Mifare Pro and DesFire 125KHZ EM, ISO14443A 13.56MHZ Mifare
RFID Read Range EM 10-50mm; Mifare10-30mm
Keypad Yes
Platform Linux
CPU ST Microelectronics® 32-Bit High-Speed CPU
LED Yes
Tamper Yes
Daylight Saving Manual Mode, Automatic Mode
On-board Buzzer Yes
Operating Temperature -30°C to 60°C
Humidity Verification 20% ~ 90% RH
Waterproof IP65
Vandal Resistance IK10
Power DC 12V
Dimensions 47mm (W) * 124mm (H) * 22mm (D)
Certificates CE, FCC, RoHS
Operating System Windows Windows / Webserver /Cloud
System Architecture Client / Server
CMS CrossChex Standard, CrossChex Lite, iTA Professional
Time Schedules Yes
Holiday/Leave Management Yes
Report Yes
Data Analytics Yes
iOS Apps Yes
Android Apps Yes
Weight 1 kg
Dimensions 1 × 1 × 1 cm
Interface

RJ45 Ethernet 10 / 100M

Identificate

Password, RFID Card

Brand

Anviz

Communication

Bluetooth, Lan, Wi-Fi + Lan

RFID

EM + Mifare 2in1

Software

Android App, IOS App, SDK, Windows
