Anviz SC011 Secure Access Controller

Categories: , , , Tags: SKU: Anviz SC011
Singapore Anviz SC011 Pro CORGEX distribution Access Control Terminal

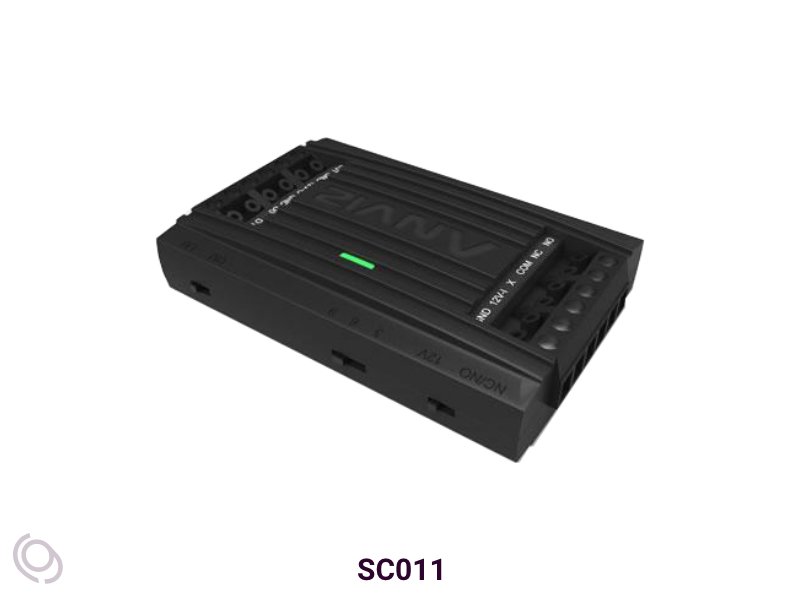

Anviz SC011 Secure Access Controller

Access Controller

SC011 is a simple, secure and cost effective access controller with high security level. SC011 doesn’t require any software, which makes it extremely easy to use. SC011 only accepts encrypted wiegand signal by Anviz to ensure high security level. Furthermore, its anti-thunder, anti-static electricity,short-circuit protection function makes SC011 outstanding among similar products.

  • No background software needed.
  • One standard ports for fingerprint or card readers.
  • Support 12V power supply for EM locks.
  • Simple setup for door-open privilege.
  • Support Anviz encrypted Wiegand for high security level.
  • Support dry contact signal output.
  • Special anti-thunder, anti-static electricity and short-circuit protection design
Anviz SC011
Wiegand Anviz Encrypted Wiegand

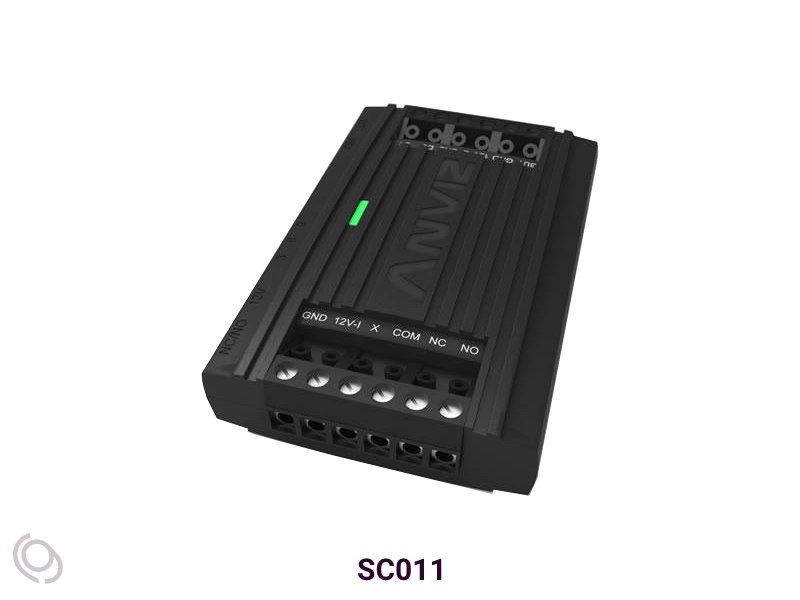

Relay 1Relay Output (COM, NO, NC) Direct Lock Control
IO Open Switch, Wiegand Out
Size 70(w)*55(h)*25(d)mm
Operating Voltage DC 12V
Weight 1 kg
Dimensions 1 × 1 × 1 cm

Dry Contact, Wiegand In
