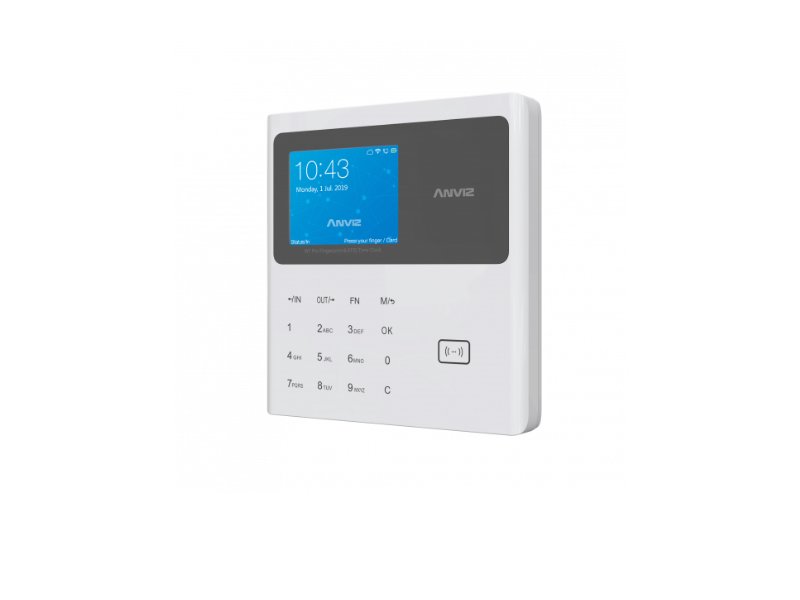

Anviz W1C Pro Cloud Based Terminal

Anviz W1C Pro CORGEX distribution Access Control Terminal

Anviz W1C Pro Cloud Based Terminal

W1C Pro is the new generation RFID time attendance terminal based on Linux platform. W1C Pro houses 2.8-inch color LCD with rich colors and visibility intuitive GUI that is easy to understand and self-explanatory. Full capacitive touch keypads will offer convenient operation experience and a full upgrade for the W series with the battery will power your business anytime and anywhere.



Model W1 Pro W1C Pro
Max User 3,000
Max Template 3,000
Max Card 10,000
Max Log 100,000 100,000
Max Fingerprints per User 2
User Photo Capacity
Communication TCP/IP, Option WiFi, Option Bluetooth TCP/IP, Option WiFi, Option Bluetooth
USB Mini USB Slave, USB flash Drive Host Mini USB Slave, USB flash Drive Host
Serial Port
Built-in Webserver Yes Yes
Wiegand
Relay
IO
Algorithm BioNANO V11 BioNANO V11
Identification Mode FP, Card(Optional), ID+FP, ID+PW, PW+Card, FP+Card Card, ID+PW, PW+Card,
Verification Speed AFOS Optical Sensor (Touch Active Sensor)
RFID Optional 125KHZ EM or 13.56MHZ Mifare Optional 125KHZ EM or 13.56MHZ Mifare
RFID Read Range 1~5cm(125KHz),13.56MHz>2cm for standard CR80 card 1~5cm(125KHz),13.56MHz>2cm for standard CR80 card
Sensor <0.5 Sec
Scan Area 22mm*18mm
FRR 0.001%
FAR 0.00001%
FP Scan Resolution 500 DPI
Fingerprint Image Display Yes
Keypad Yes Yes
Self-defined Status 8 8
Work Code 6 digit 6 digit
Groups & Time Schedules 16 Groups, 32 Time Zones 16 Groups, 32 Time Zones
Scheduled Bell 30 30
Short Message 50 50
Platform Linux Linux
CPU Industrial High-Speed 1Ghz Processor Industrial High-Speed 1Ghz Processor
Screen 2.8″ Color Screen HD 2.8″ Color Screen HD
LED Yes Yes
SD Card Slot
Camera
Voice Prompt
Tamper
Daylight Saving Manual Mode, Automatic Mode Manual Mode, Automatic Mode
On-board Buzzer
Operating Temperature -25°C to 60°C -25°C to 60°C
Humidity Verification 10% ~ 90% RH 10% ~ 90% RH
Waterproof IP53(Optional Waterproof Cover) IP53(Optional Waterproof Cover)
Vandal Resistance
Power DC 5V or Power Over USB, Optional 2600mah Lithium battery DC 5V or Power Over USB, Optional 2600mah Lithium battery
Dimensions 130mm (W) * 140mm (H) * 30mm (D) 130mm (W) * 140mm (H) * 30mm (D)
Certificates CE, FCC, RoHS CE, FCC, RoHS
Operating System Windows / Webserver / P2P Cloud / APP Windows / Webserver / P2P Cloud / APP
System Architecture Client / Server Client / Server
CMS CrossChex Standard, CrossChex Lite, iTA Professional, Yonyou ERP CrossChex Standard, CrossChex Lite, iTA Professional, Yonyou ERP
Time Schedules Yes Yes
Holiday/Leave Management Yes Yes
Report Yes Yes
Data Analytics Yes Yes
iOS Apps Yes Yes
Android Apps Yes Yes
Weight 1 kg
Dimensions 1 × 1 × 1 cm
Interface

RJ45 Ethernet 10 / 100M

Identificate

Facial Recognition

Brand

Anviz

RFID

EM ID 125KHZ, Mifare IC 13.56MHz
