Anviz M5 Plus / M5 Pro Metal casing With IP65 water-proof design

Categories: , , , , Tags: , , SKU: Anviz_M5 Plus

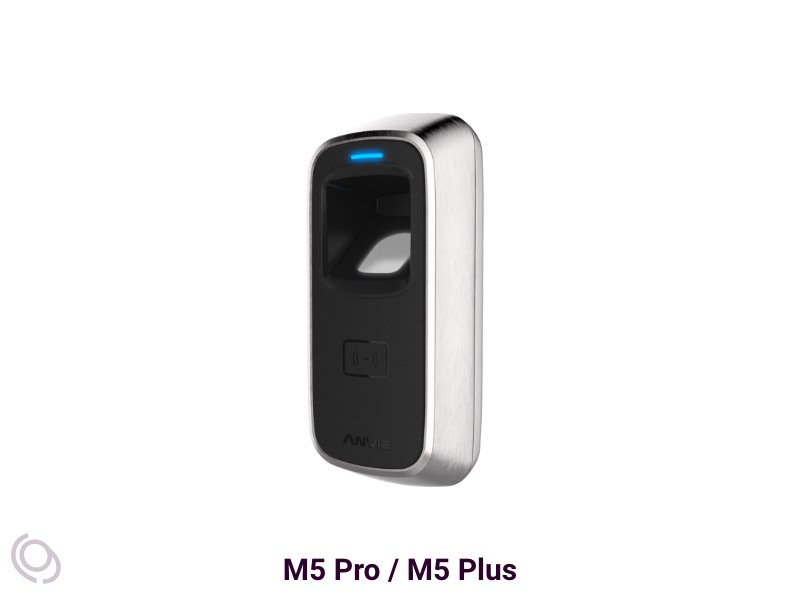

img Anviz M5 Pro CORGEX distribution Access Control Terminal

Anviz M5 Plus / M5 Pro Metal casing With IP65 water-proof design

M5 Pro by ANVIZ is a compact access control device that is designed to fit most door frames.
The metal casing, with IP65 water-proof design, makes it suitable for indoor or outdoor
applications. M5 Pro supports 125kHz Optional Mifare cards and fingerprint identification.
It has both Wiegand and TCP/IP, Optional Bluetooth protocol interfaces, and can be combined
with SC011 (Power supply controller) to be a standalone access control device, or integrated with
professional distributed access controller from a third party to enable large-scale networks.

Fingerprint + EM Card Reader

5,000 Fingerprints, 50,000 Records


M5 Pro M5 Plus
Max User 5000
Max Template 5000
Max Card 5000
Max Log 50,000
Max Fingerprints per User 2
User Photo Capacity
Commication TCP/IP, Optional Bluetooth TCP/IP, Bluetooth
USB Mini USB Slave
Serial Port RS485,
Built-in Webserver Yes
Wiegand Wiegand 26, Anviz Wiegand
Relay 1Relay Output (COM, NO, NC)
IO Open switch, Tamper alarm output, Wiegand Out
Algorithm BioNANO V11
Identification Mode Fingerprint, Card
Verification Speed <0.5 Second (1:N)
RFID 125KHZ EM, Optional 13.56MHZ Mifare
RFID Read Range 0.78 to 1.96in. (10 to 50mm)
Fingerprint Sensor AFOS
Scan Area
FRR 0.00001
FAR 0.0000001
FP Scan Resolution 500 DPI
Fingerprint Image Display
TIME ATTENDANCE Self-defined Status
Work Code
Groups & Time Schedules
Scheduled Bell
Short Message
Platform Linux
CPU ST Microelectronics® 32-Bit High-Speed CPU
SD Card Slot
Voice Prompt
Tamper Yes
Daylight Saving Manual Mode, Automatic Mode
On-board Buzzer Yes
Operating Temperature -30°C to 60°C
Humidity Verification 20% ~ 90% RH
Waterproof IP65
Vandal Resistance IK10
Power DC 12V
Dimensions 50mm (W) * 124mm (H) * 34.5mm (D)
Certificates CE, FCC, RoSH
Operating System Windows / Webserver
System Architecture Client / Server
CMS CrossChex Standard, CrossChex Lite, iTA Professional
Time Schedules Yes
Holiday/Leave Management Yes
Report Yes
Data Analytics Yes
iOS Apps Yes
Android Apps Yes
Weight 1 kg
Dimensions 1 × 1 × 1 cm

RJ45 Ethernet 10 / 100M


Fingerprint, RFID Card




EM ID 125KHZ, Mifare IC 13.56MHz


Plus, Pro
