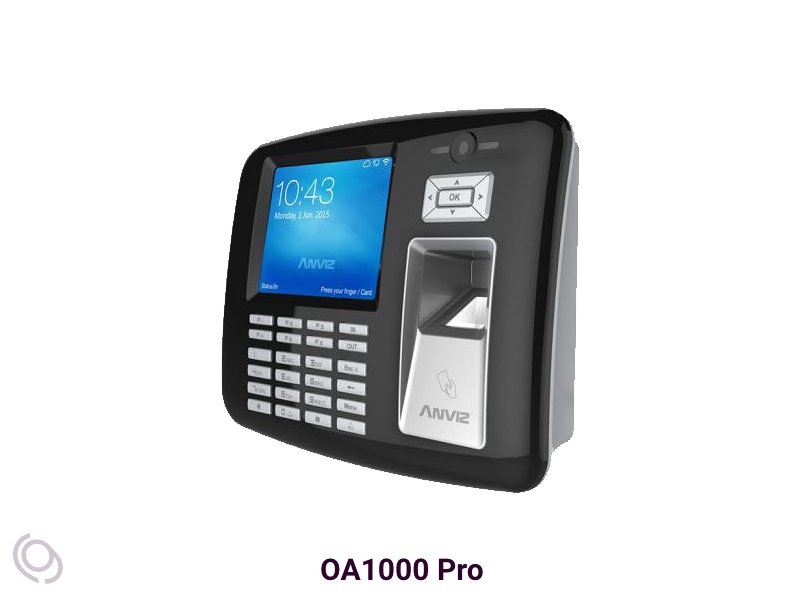

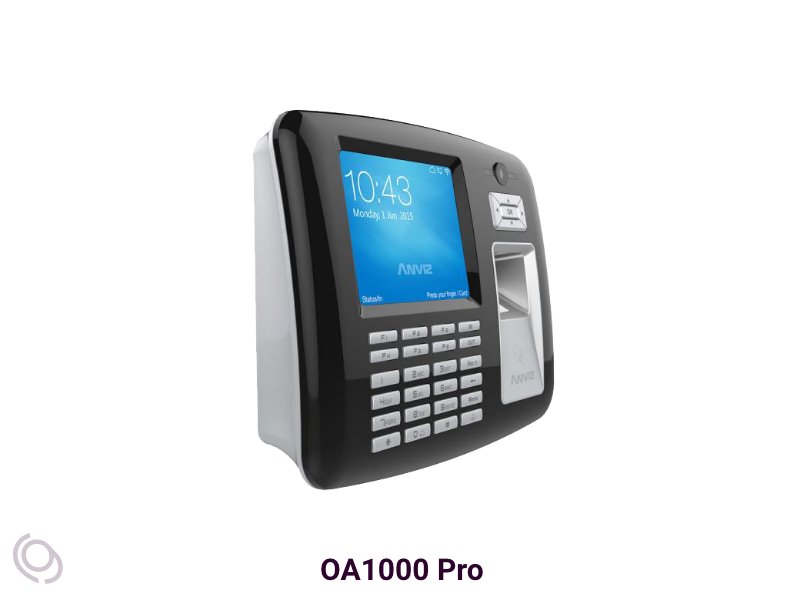

Anviz OA1000Pro series / OA 1000 Mercury Pro

Anviz OA1000 Pro CORGEX distribution Access Control Terminal

Anviz OA1000Pro series / OA 1000 Mercury Pro

As a flagship series of Anviz high-level fingerprint access control, the OA1000 Pro series meet various integration requirements with Dual Core 1.0GHz CPU and inbuilt cloud software. Based on Linux platform, integrated with third-party modules like HID iClass RFID module, live scan Lumidigm sensor, and 360°identification U.are.U sensor.

OA1000 Pro series is the most favorite choice for professional security system integrators.

OA 1000 Pro OA 1000 Mercury Pro
Max User 10,000 1,000
Max Template 10000 Lumidigm 1,000, 30,000(1:1),
Optional BioNANO 10,000
Max Card 10,000 1,000
Max Log 100,000 200,000
Max Fingerprints per User 5
User Photo Capacity 500 Support 32G SD card
Commication TCP/IP, Optional WIFI,4G
USB Mini USB Slave,USB flash Drive Host
Serial Port RS485, RS232
Built-in Webserver Yes
Wiegand Wiegand 26, Anviz Wiegand
Relay 2 Relay Output (COM, NO, NC)
IO Door Sensor, Open switch,Door Bell, Alarm output,Wiegand In and Output
Algorithm BioNANO V11 Lumidigm, Optional BioNANO V11
Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Verification Speed 1: 10,000 <0.5 Sec
RFID 125KHZ EM, optional 13.56MHZ Mifare, Optional Mercury, U.ARE.U, HID iClass
RFID Read Range EM 10-50mm; Mifare10-30mm
Sensor AFOS Lumidigm Live Identification
Scan Area 18mm * 22mm 13.9mm*17.4mm
FRR 0.00001
FAR 0.0000001
FP Scan Resolution 500 DPI
Fingerprint Image Display Yes
Keypad Yes,6 User Defined Function Keys
Self-defined Status 8
Work Code 6 digit
Groups & Time Schedules 16 Groups, 32 Time Zones
Scheduled Bell 30
Short Message 200
Platform Linux
CPU 400MHz Arm9 high speed processor, 8G Flash Memory & 1G SDRAM Dual Core 1.0GHZ High Speed Processor, 8G Flash Memory & 1G SDRAM
Screen 3.5 Inch TFT Display
LED Yes
SD Card Slot Yes
Camera 3 Million Pixel Camera
Voice Prompt Yes
Tamper Yes
Daylight Saving Manual Mode, Automatic Mode
On-board Buzzer Yes
Operating Temperature -20°C to 60°C
Humidity Verification 10% ~ 90% RH
Waterproof IP53(Optional Waterproof Cover)
Vandal Resistance
Power DC 12V 1A
Dimensions 180mm (W) * 137mm (H) * 40mm (D) 180mm (W) * 137mm (H) * 50mm (D)
Certificates CE, FCC, RoHS
Operating System Windows / Webserver / P2P Cloud
System Architecture Client / Server
CMS CrossChex Standard, CrossChex Lite, iTA Professional
Time Schedules Yes
Holiday/Leave Management Yes
Report Yes
Data Analytics Yes
Weight 1 kg
Dimensions 1 × 1 × 1 cm
Brand

Anviz

Series

AFOS, Lumidigm

RFID

EM ID 125KHZ, Mifare IC 13.56MHz

Communication

Lan, Wi-Fi + Lan

Interface

RJ45 Ethernet 10 / 100M

Identificate

Fingerprint, RFID Card
